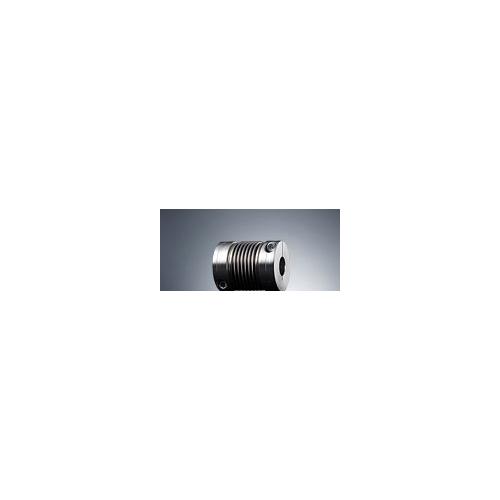

Toolflex
Toolflex

Bellow with six shafts
Torques from 5 to 340 Nm
Bore diameters from 3 to 55 mm
Tmax. = 200 °C
Non-positive bellow-hub connection
Clamping hub, double slotted, with/without keyway, optionally with keyway
Bellow with flanged insert connection up to size 45,
Hubs size 55 are welded to the bellow
Hubs from aluminium up to size 45, hubs size 55 from steel
Optionally available as a stainless steel design
