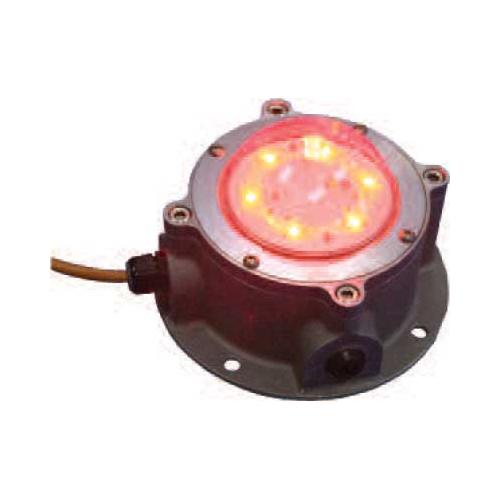

HDL203 - Ex emb LED Helideck/obstruction/bulkhead luminaire IP 66/67 T5 Gas & Dust
HDL203 - Ex emb LED Helideck/obstruction/bulkhead luminaire IP 66/67 T5 Gas & Dust

Available in Green (Helidecks), Red (Obstruction) or White (general lighting). This unit can be set on installation for constant light output or flashing. The LED technology should give the unit 100,000 hours of life (10 yr).  Low output, Low maintenance.

Certification
  • Certification: ATEX & ABS
  • Protection: Ex II 3 G D Ex emb IIC T5 Gc, Ex tb IIIC T68oC Dc IP66/67
  • Operating Temp: -20°C to +55°C
  • Voltage: 110V - 254V AC or 24V AC/DC
  • Marine Grade Aluminium Body
  • Polycarbonate Lens
  • Stainless Steel Fasteners
Key Features
  • Available in Green (Helidecks), Red (Obstruction) or White (general lighting).
  • Customer can select constant light output or flashing upon installation.
  • Conforms to ICAO annex 14 volume II and CAP437 for Helideck perimeter lighting and CAP168 for Obstruction lighting.
  • LED technology will give a predicted working life of 10 years +.
  • Utilises 6 off 1.2W LEDS.
  • Low power consumption.
  • Easy installation and low maintenance.
  • Rugged construction - resistant to vibration.
  • Instant light output.
  • 360º coverage.
  • Independently photometrically tested.
  • All units supplied with 3 cable entries.
  • IP66 and IP67
  • Optional wire guard available for extra protection.

For more information please refer to our datasheet.
