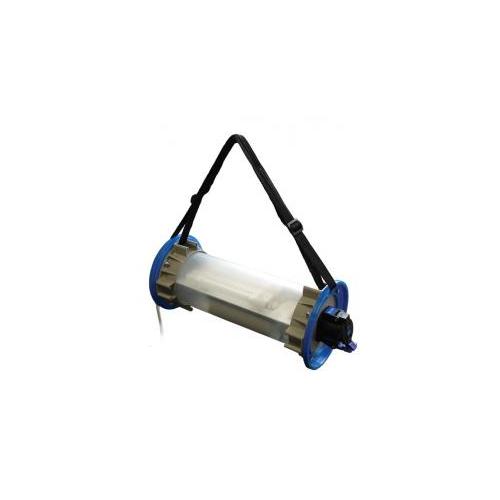

HDL105 - Ex em Portable-Temporary-Permanent-Linkable Luminaire

The HDL105 is understandably one of the most successful items in our range. It can be supplied direct with cable entries or with plugs and sockets to allow luminaires to be instantly linked in series. Emergency variants are available and the unit comes in a variety of sizes, combinations and plug and cable options which are endless. Magnetic fixing brackets and a variety of other fitting options are available for this unit.

Certification

•Certification - II 2GD Ex emb
•Protection Cable Gland Option - T3 / T4 Gas & Dust IP66 / 67 / 68
•Protection Plug and Socket Option - T3 / T4 Gas & Dust IP66
•Operating Temp. - -20 to +53
•Voltage - 24V - 28V / 42V - 54V / 110V - 254V / 220V - 254V
•Emergency version available
•Polycarbonate or Aluminium End Caps
•Polycarbonate Clear lamp tube.
•A4 Stainless Steel Fasteners.

Download Product Sheet for full product specifications
