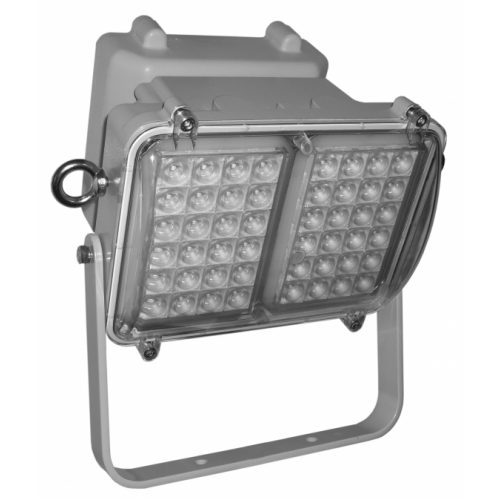

HDL206E - Emergency Modular LED Luminaire - Zone 2
HDL206E - Emergency Modular LED Luminaire - Zone 2

Emergency backup power can provide 3 hours at 50% illumination or 90 minutes at full illumination. The HDL 106E features an integrated power supply, rugged construction and can be configures with an optional wire guard for extra protection.

Certification

  • Certification: ATEX & ABS
  • Protection: Ex II 3 G D Ex emb IIC T4 Gc, Ex tb IIIC T103oC Dc IP66/67
  • Operating Temp: -20°C to +50°C
  • Voltage: 110V to 240V  AC
  • Marine Grade Aluminium Body
  • Polycarbonate Lens Cover
  • Stainless Steel Painted Bracket
Key Features
  • Battery backup power provides 3 hours at 50% illumination, 90 minutes at full illumination.
  • Modular construction allows the modules to be supplied interlinked with each other to provide greater light output.
  • Can be used as a single unit - small floodlight or bulkhead or linked together to replicate a large 250W/400W floodlight.
  • Can be supplied in multiple configurations of standard or emergency modules.
  • Each module utilises 48 off 1.2W LED's.
  • Integrated power supply.
  • Low power consumption.
  • Rugged construction - resistant to vibration.
  • Independently photometrically tested.
  • All units supplied with 2 cable entries as standard. Additional entries available on request.
  • IP66 and IP67.
  • Optional wire guard available for extra protection.
  • Narrow, Medium, Wide and Extra Wide beam light output available.

For more information please refer to our datasheet.
