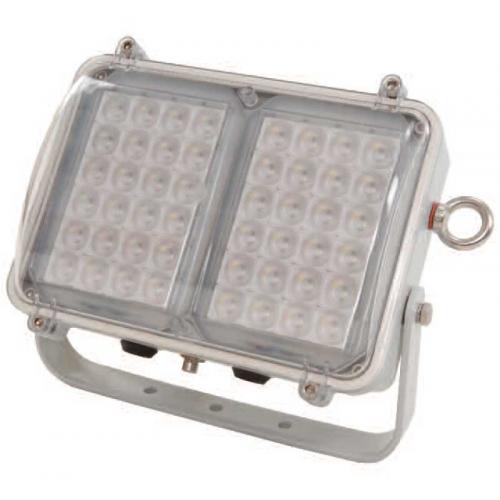

HDL206S - Ex emb LED Modular Floodlight/Bulkhead luminaire II 3GD Ex emb IIC T4 Gb IP66/67
The future of Hazardous area lighting. The HDL206S LED weighs only 6.0 kg yet can generate as much illumination as a much larger input SON or MBI alternative. Instant on / off low power 100,000 hours life expectancy. Vibration resistant. Fit and forget illumination. Emergency variant available.
Linkable to give larger outputs. Available in Narrow, Medium, Wide or Extra wide beam pattern.
Certification
- Certification: ATEX & ABS
- Protection: Ex II 3 G D Ex emb IIC T4 Gc, Ex tb IIIC T103oC Dc IP66/67
- Operating Temp: -20°C to +50°C
- Voltage: 110V to 240V AC or 24V AC/DC
- Marine Grade Aluminium Body
- Polycarbonate Lens Cover
- Stainless Steel Painted Bracket.
Key Features
- Modular construction allows the modules to be interlinked with each other to provide greater light output.
- Can be used as a single unit - small floodlight or bulkhead or be linked together to replicate a large 250W/400W floodlight.
- Each module utilises 48 off 1.2W LED's
- Integrated power supply.
- Low power consumption.
- Rugged construction - resistant to vibration.
- Independently photometrically tested.
- All units supplied with 2 cable entries.
- IP66 and IP67.
- Optional wired guard available for extra protection.
- Infra red variants available.
- Narrow, Medium, Wide and Extra wide beam light output available.
For more information please refer to our datasheet.
